KABINETT

ÖVRIGT

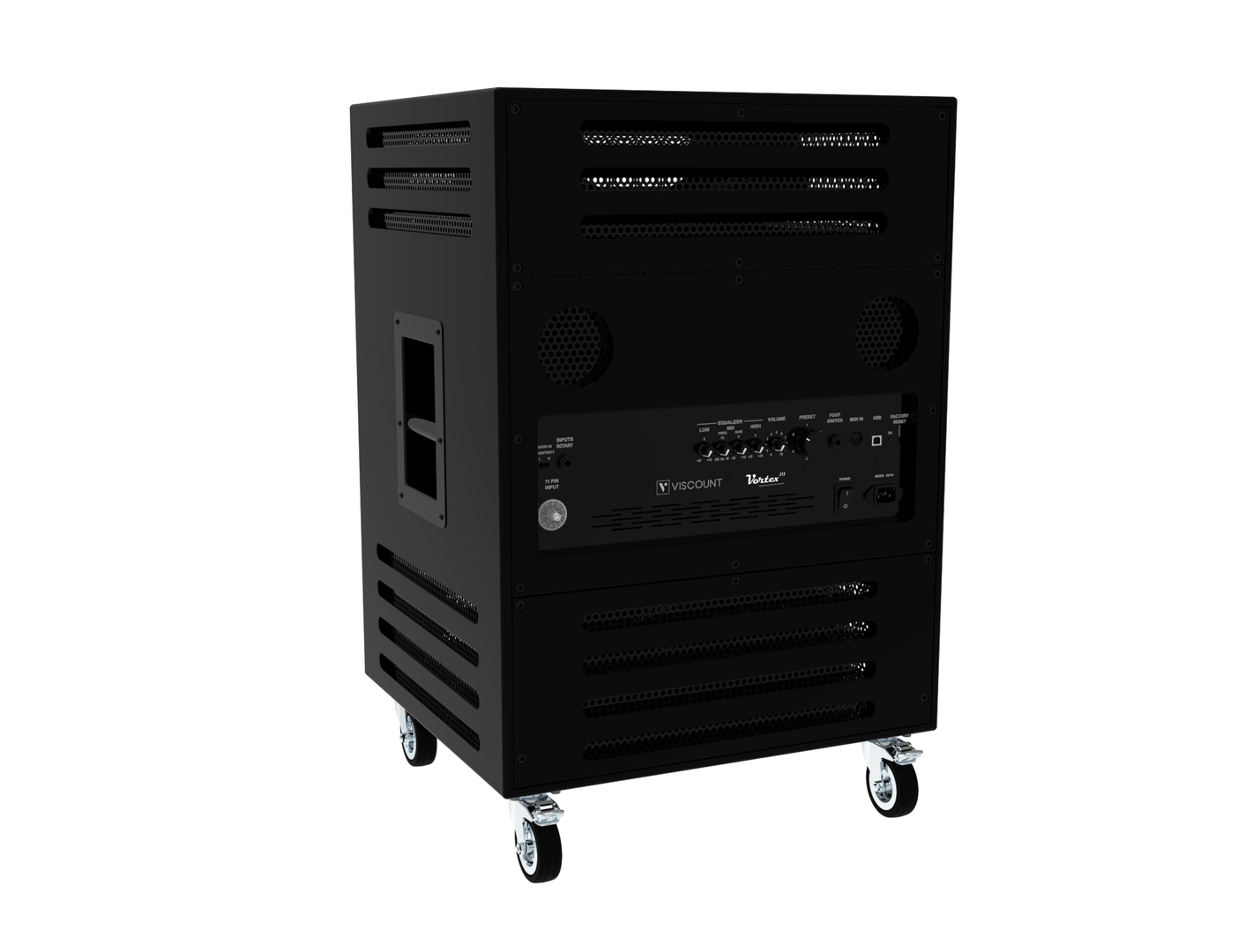

VORTEX 315

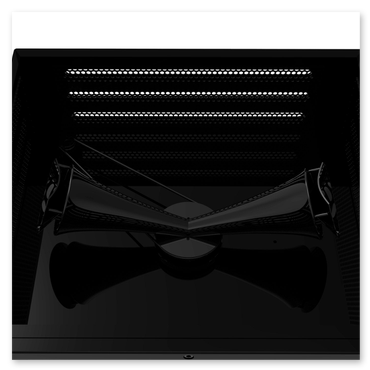

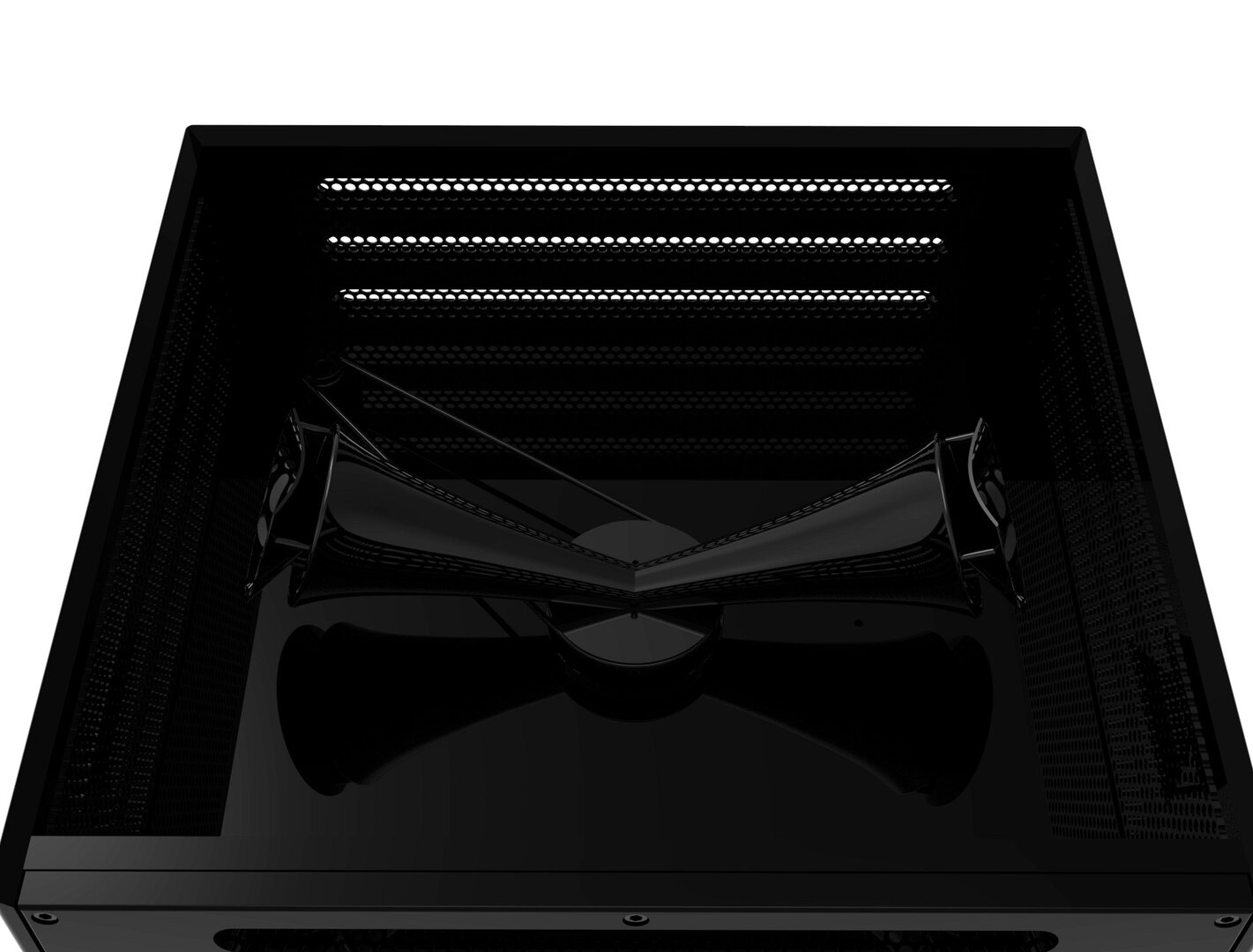

Vortex 315 is a 2 amplified channels rotary speaker composed by a woofer with rotating drum and a driver with rotating horn, specifically designed in collaboration with Silvio della Mattia, to reproduce the original rotary horn speakers. Vortex 315 is the perfect speaker to connect to your Legend Soul, or any other organ, bringing that vintage style that will make the difference.

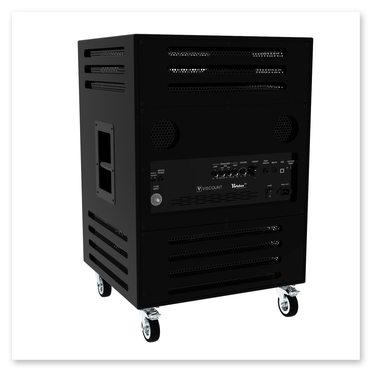

VORTEX 315
The Vortex 315, designed by Silvio della Mattia and Viscount, is the ultimate rotary speaker built specifically for organs using high quality materials and components. The most reliable sound in a lightweight rotary speaker.

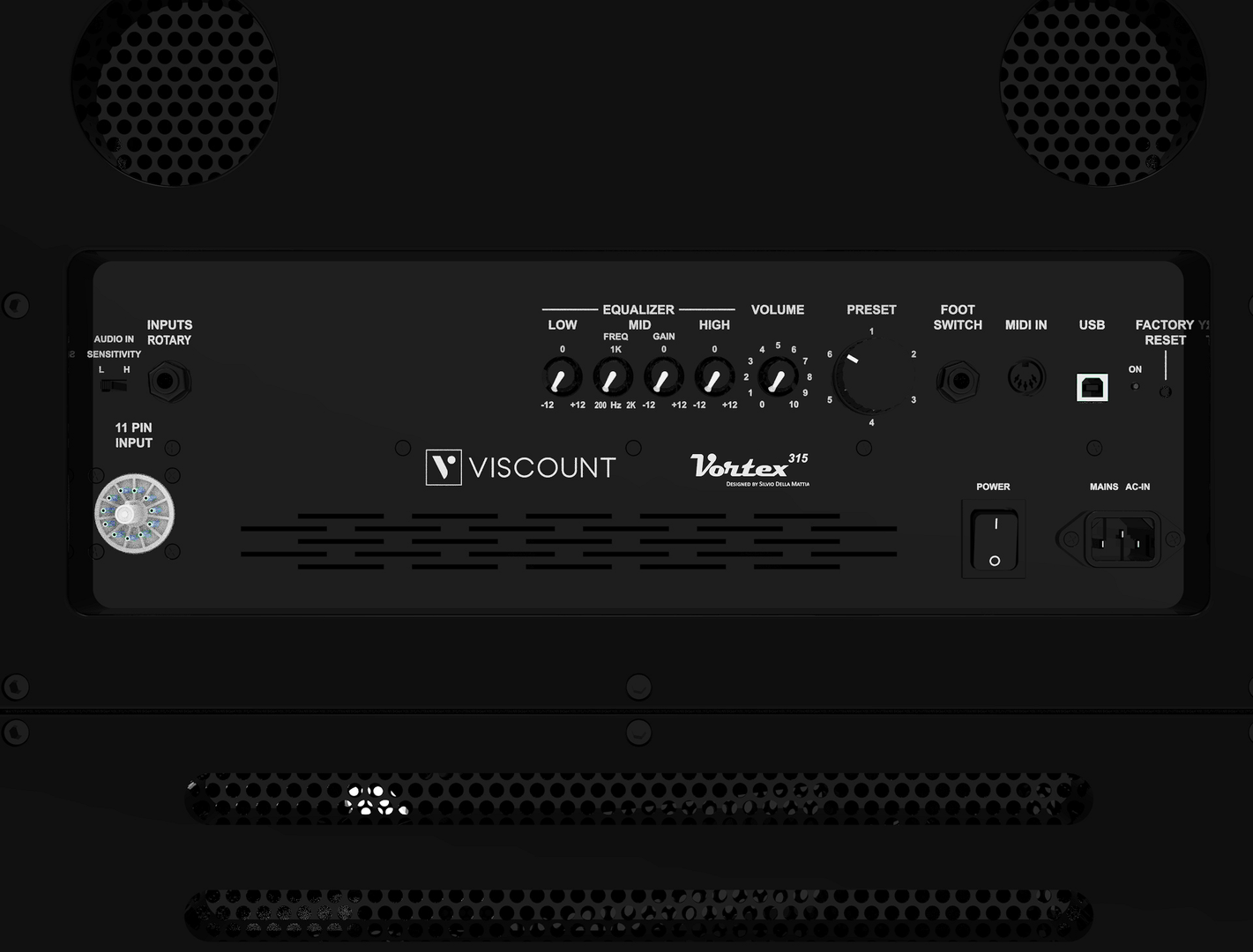

Connections 3 pins IEC 250 VAC, 2x balanced input jacks, jack pedal, USB B TYpe, MIDI IN, UNDECAL 11 pin connector

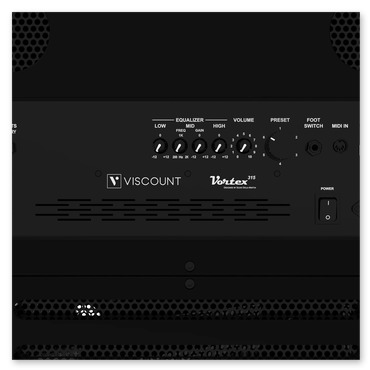

Controls Volume, Equalizer (bass - mid gain - mid frequency - treble), 11 pin input sensitivity, FACTORY RESET, rotative presets selector
Engine Controls The led is: off when the motors are brake; yellow when the motors are slow; red when the motors are fast.
You can brake (independently from the horn) the rotor bass by it’s switch.
Choose the rotations of the horn on three speed by its switch.
Choose the horn position when it’s brake, if rear or random.
Speakers
1x15" Woofer, PA Driver with rotating horn
Cabinet Plywood
Protection Metal grids
Dimensions (WxHxD)cm 52 x 75 x 48
Weight 27 Kg
Colours / Finishes Black, Red Walnut
DESCRIPTION
Vortex 315 is a 2 amplified channels rotary speaker composed by a woofer with rotating drum and a driver with rotating horn, specifically designed in collaboration with Silvio della Mattia, to reproduce the original rotary horn speakers. Vortex 315 is the perfect speaker to connect to your Legend Soul, or any other organ, bringing that vintage style that will make the difference.

SPECIFICATIONS

OVERVIEW
Type2 amplified channels (woofer with rotating drum + driver with rotating horn)
Power (W)300W Upper 80W and Lower 220W
Crossover Frequency 800Hz
Subsonic filter Yes
HF Protectioncompressor, short circuit, thermal
PC Control Yes

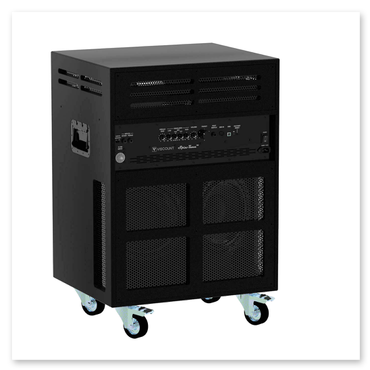

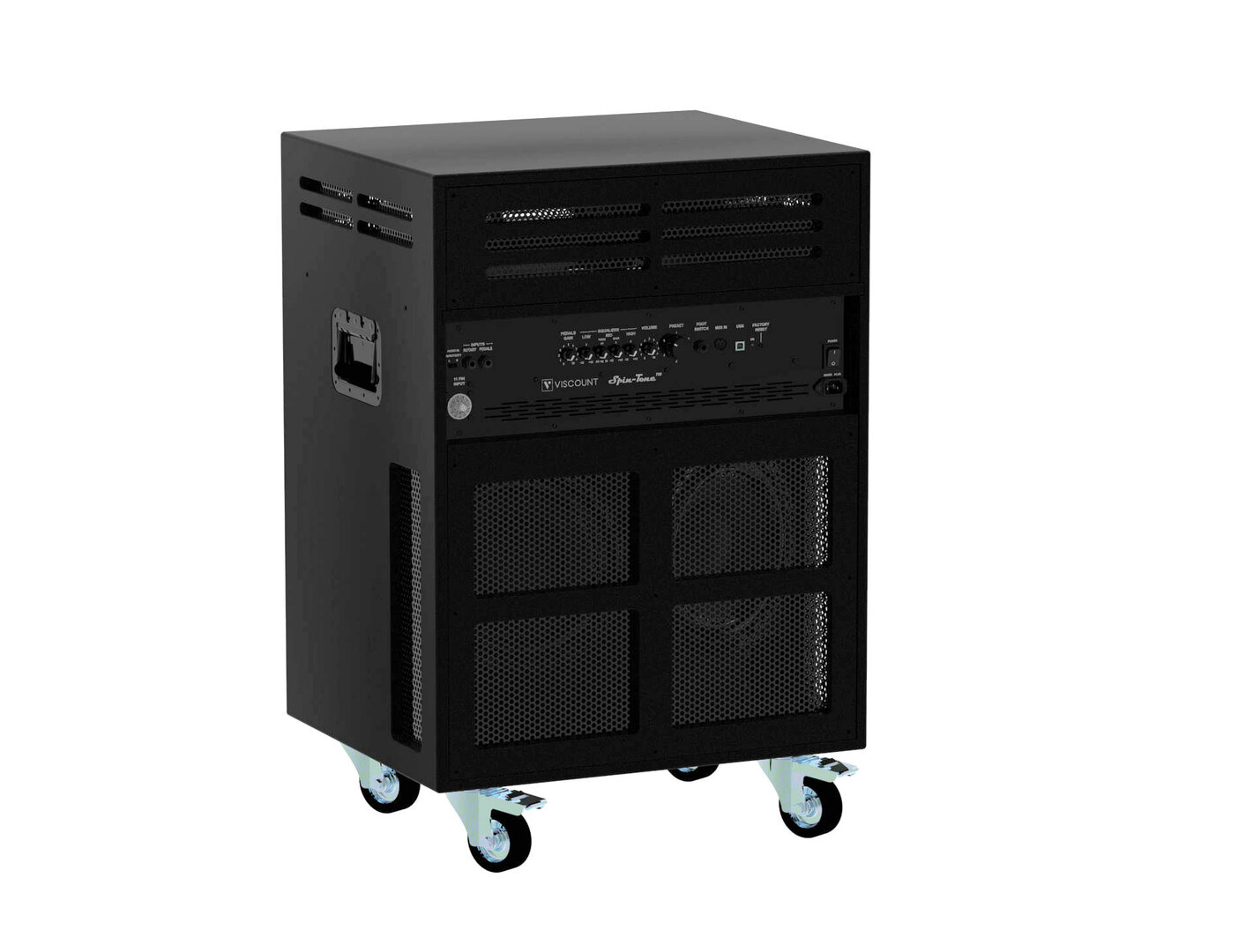

SPIN-TONE 700
DESCRIPTION

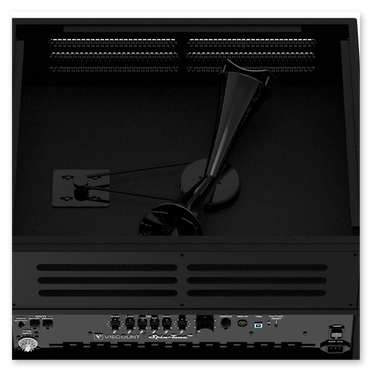

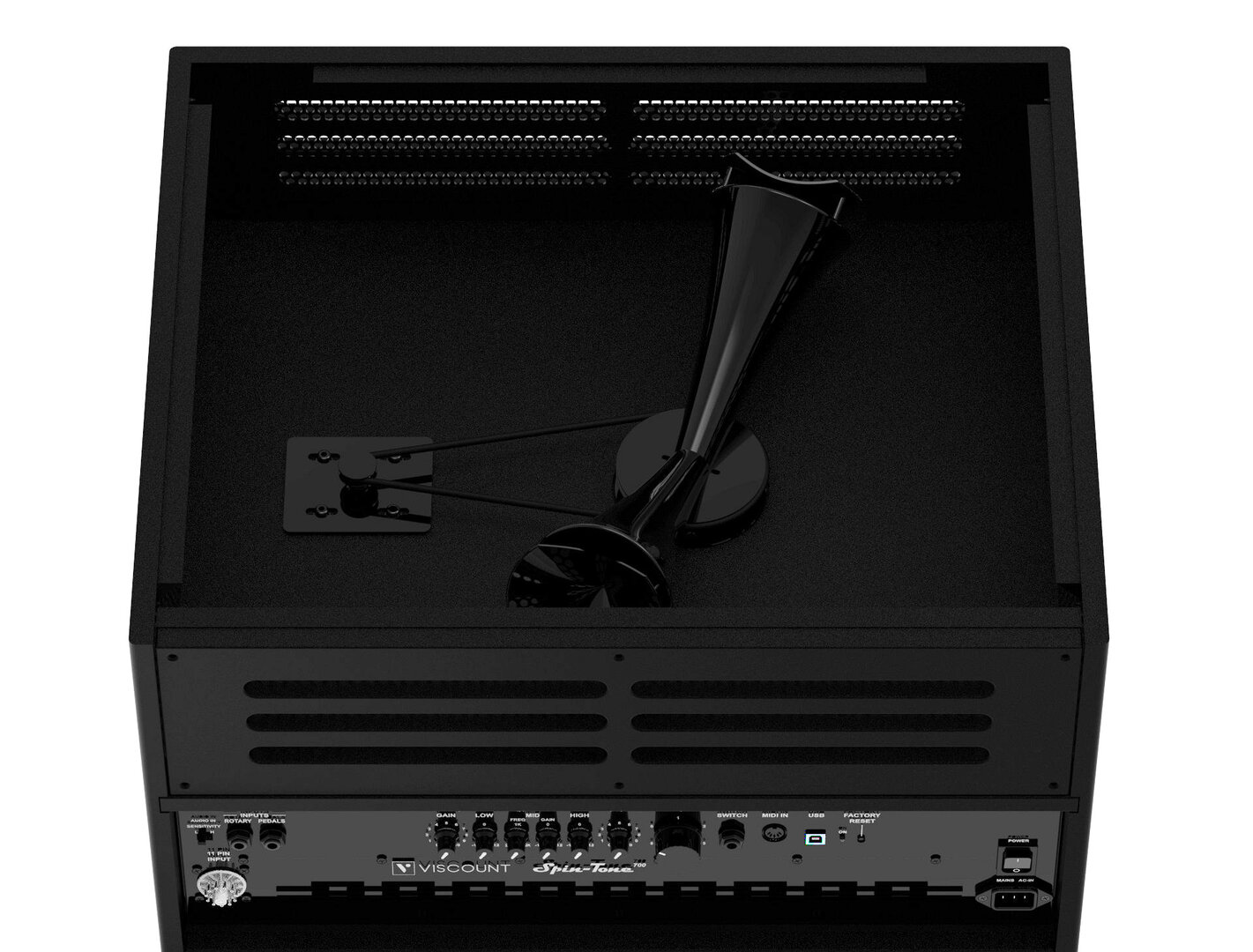

Spin-Tone 700 (750W) represents the most powerful model of its line. With 3 amplified channels it is equipped with 2 woofers for a rotary effect and a driver with a rotating horn, specifically designed to reproduce the original rotary horn amplifiers. The Spin-Tone 700 is the perfect amp to connect to your Legend Soul, or any other instrument of our line and not, bringing that vintage touch that will make the difference.

OVERVIEW
Type3 amplified channels (2 woofers for rotary effect + driver with rotating horn)Power (W)
Lower 300W + 300W (L+R) - Upper 150W
Max SPL calculated (dB)127
Crossover Frequency1.2 Khz
Subsonic filter Yes


HF Protectioncompressor, short circuit, thermal
PC Control Yes

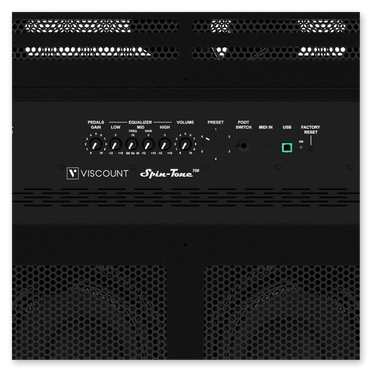

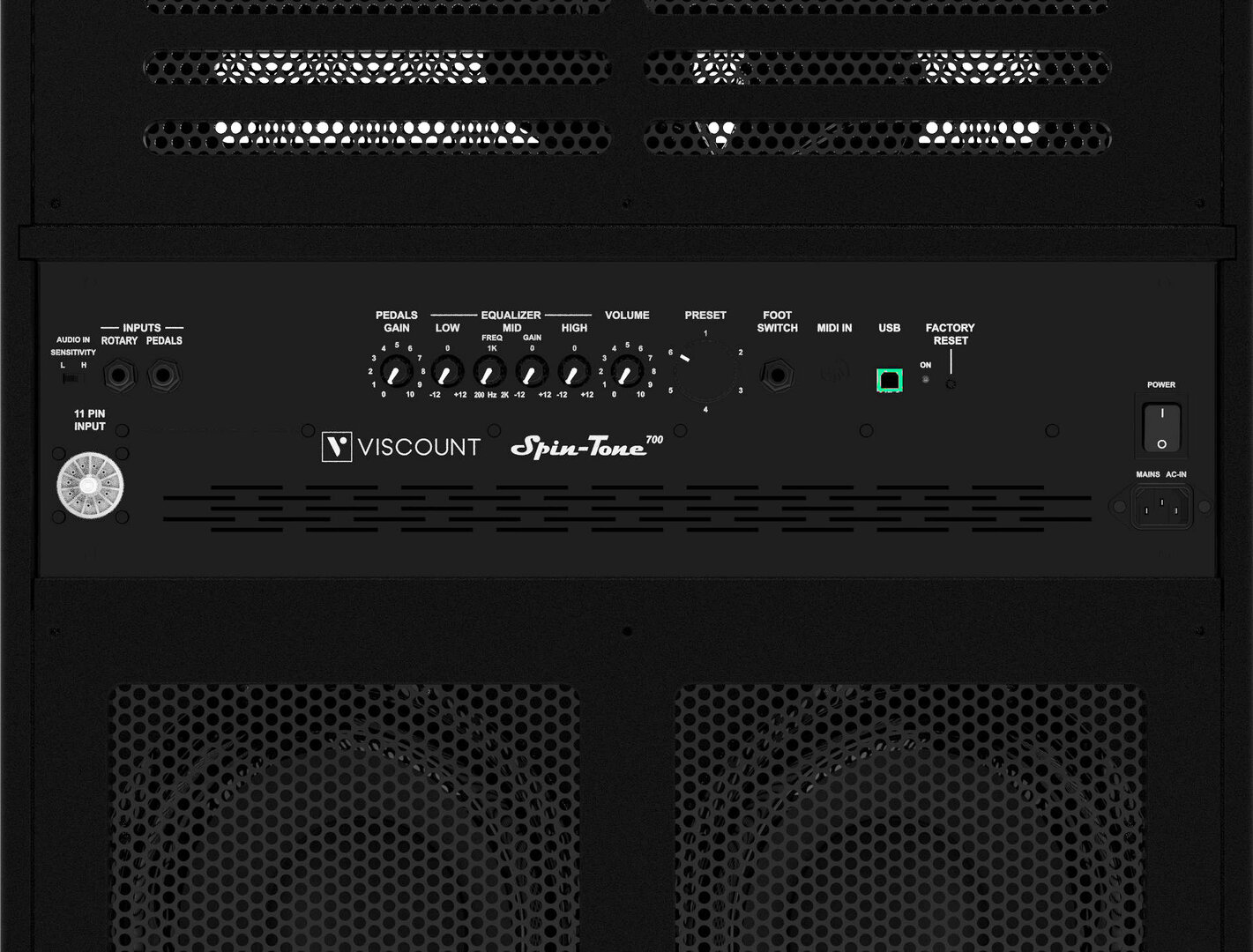

Connections 3 pins IEC 250 VAC, 2x balanced input jacks, jack pedal, USB B TYpe, MIDI IN, UNDECAL 11 pin connectorControlsPedal input gain, Volume, Equalizer (bass - mid gain - mid frequency - treble), 11 pin input sensitivity, FACTORY RESET, rotative presets selector
Speakers2x10" Woofer, PA Driver with rotating horn
Cabinet Plywood
Protection Metal grids
Dimensions (WxHxD)cm 59 x 76 (87 with wheels) x 50 - Weight43,5 Kgs
Colours / Finishes Black, Red Walnut
SPIN-TONE 400

Subsonic filter Yes
HF Protectioncompressor, short circuit, thermal
PC ControlYes

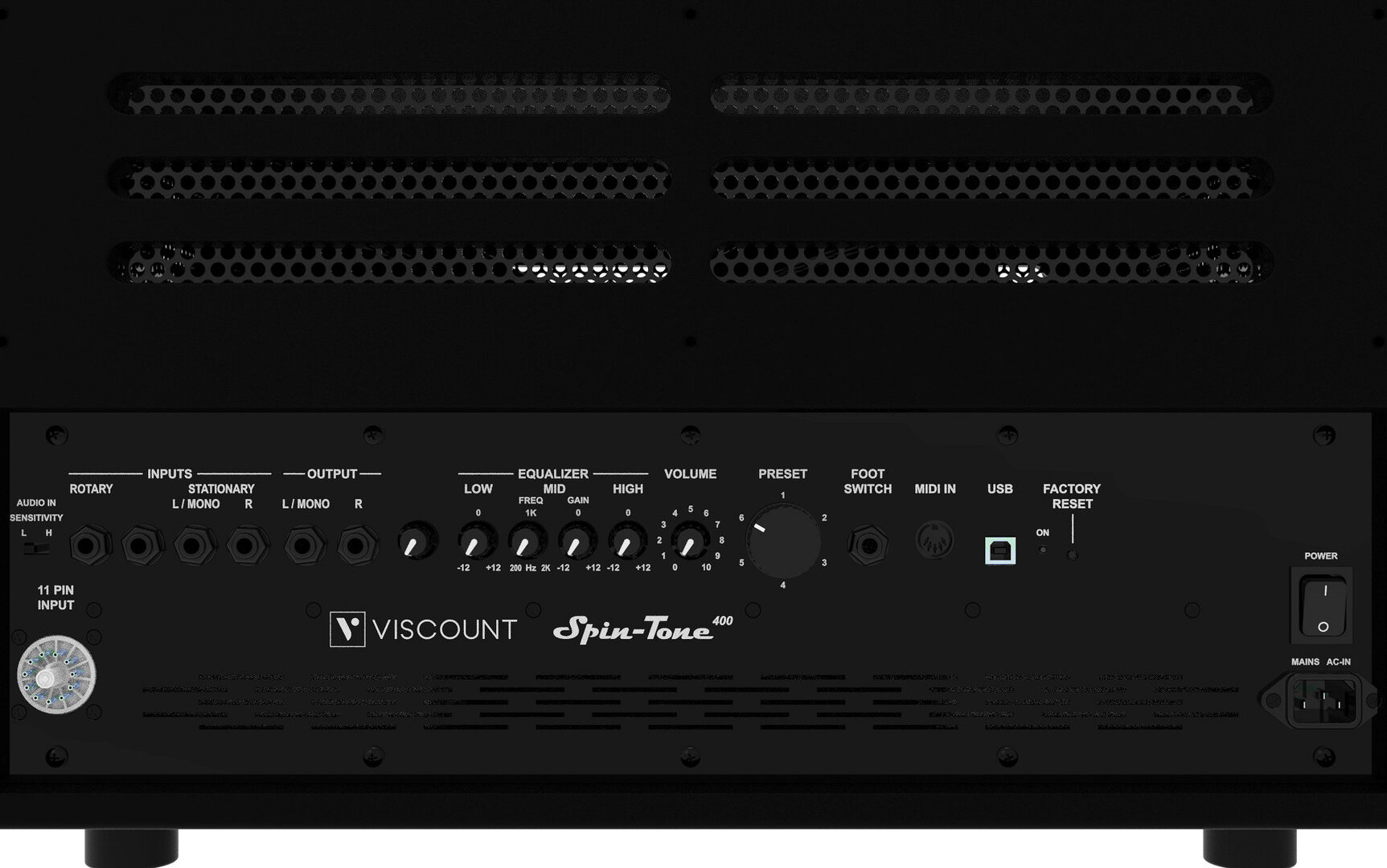

Connections 3 pins IEC 250 VAC, 3x balanced input jacks, 2x output jacks, jack pedal, USB B TYPE, MIDI IN, UNDECAL 11 pin connectorControlsVolume,Equalizer (bass - mid gail - mid frequency - treble), 11 pin input sensitivity, FACTORY RESET, rotative presets selector
Speakers 2x5" Woofer, 2x1" Tweeter, PA Driver with rotating horn
Cabinet Plywood
Protection Metal grids
Dimensions (WxHxD)cm 59 x 37 x 50 "Weight23,5 Kg
Colours / Finishes Black

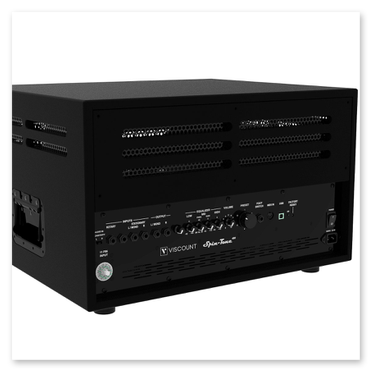

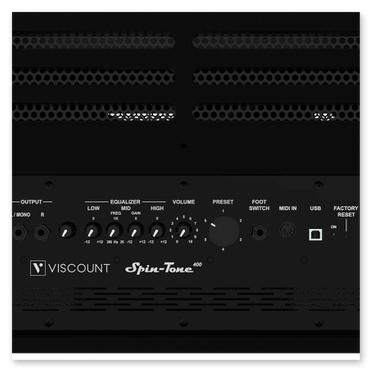

SPIN-TONE 400

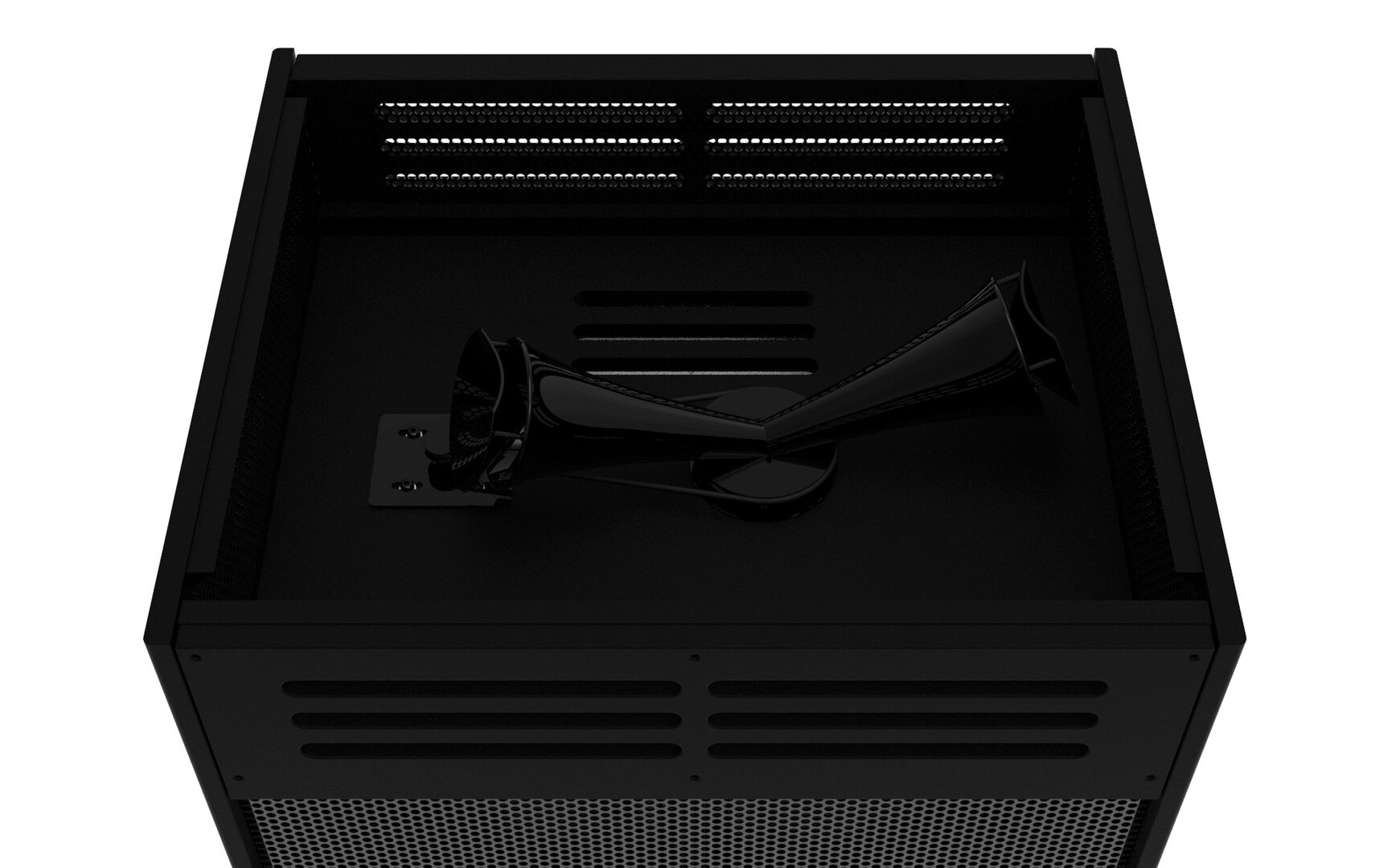

The Spin-Tone 400 incorporates an hybrid system with a rotating horn in the upper part and powerful woofers in the lower specifically designed to recreate the original rotary speakers. The perfect solution for a vintage sound!

DESCRIPTION

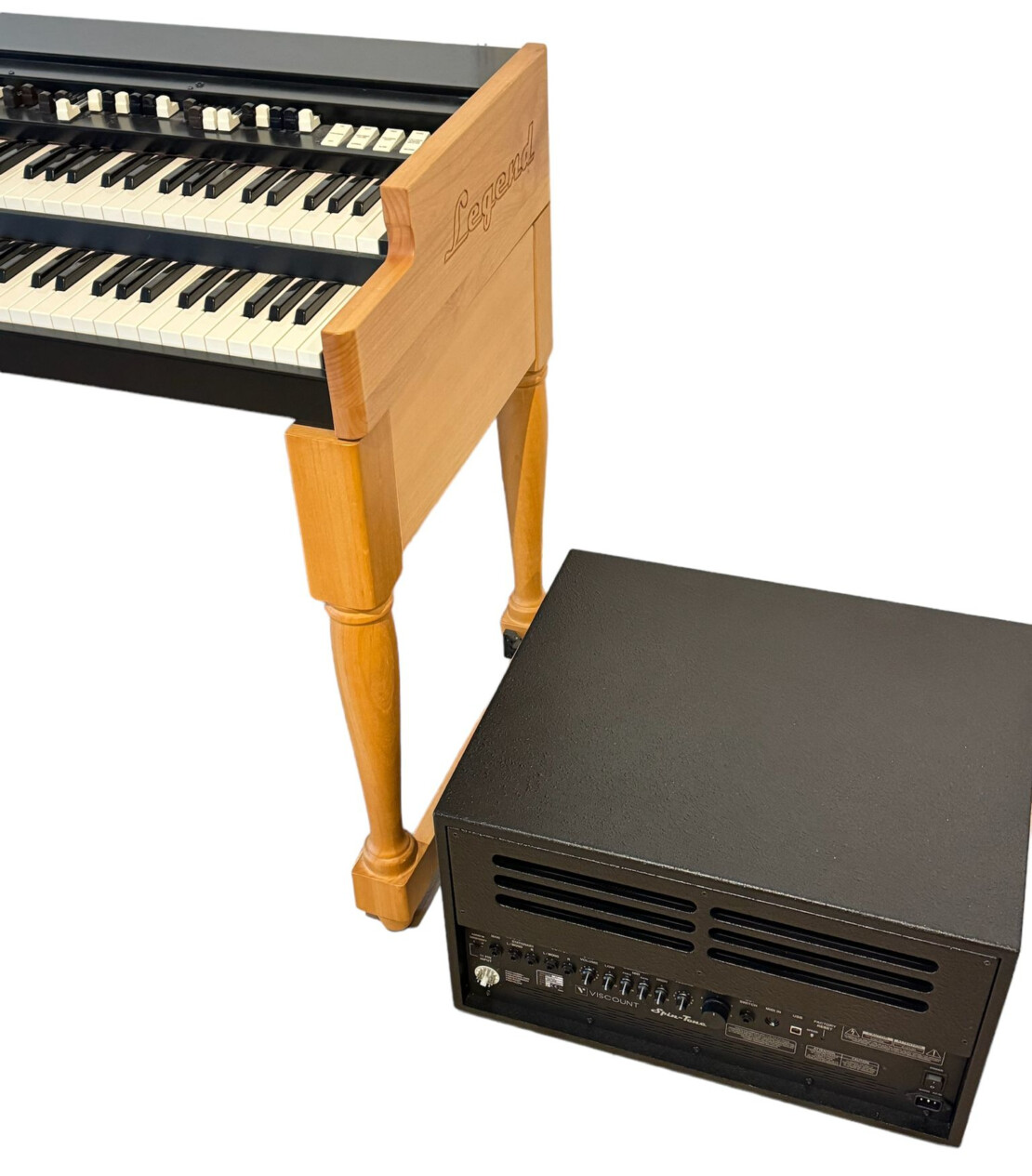

Spin-Tone 400 (400W), with its 23,5 kg, is the best portable solution for gigs. With 3 amplified channels, it is equipped with 2 woofers for rotary effect and a driver with rotating horn, specifically designed to reproduce the original rotary horn amplifiers. The Spin-Tone 400 is the perfect amp to connect to your Legend Soul, or any other instrument of our line and not, bringing that vintage touch that will make the difference.

OVERVIEW

Type3 amplified channels (2 woofers for rotary effect + driver with rotating horn)
Power (W)Lower 150W + 150W (L+R) - Upper 150W
Max SPL calculated (dB)114
Crossover Frequency 1.2Khz
HURRICANE 210

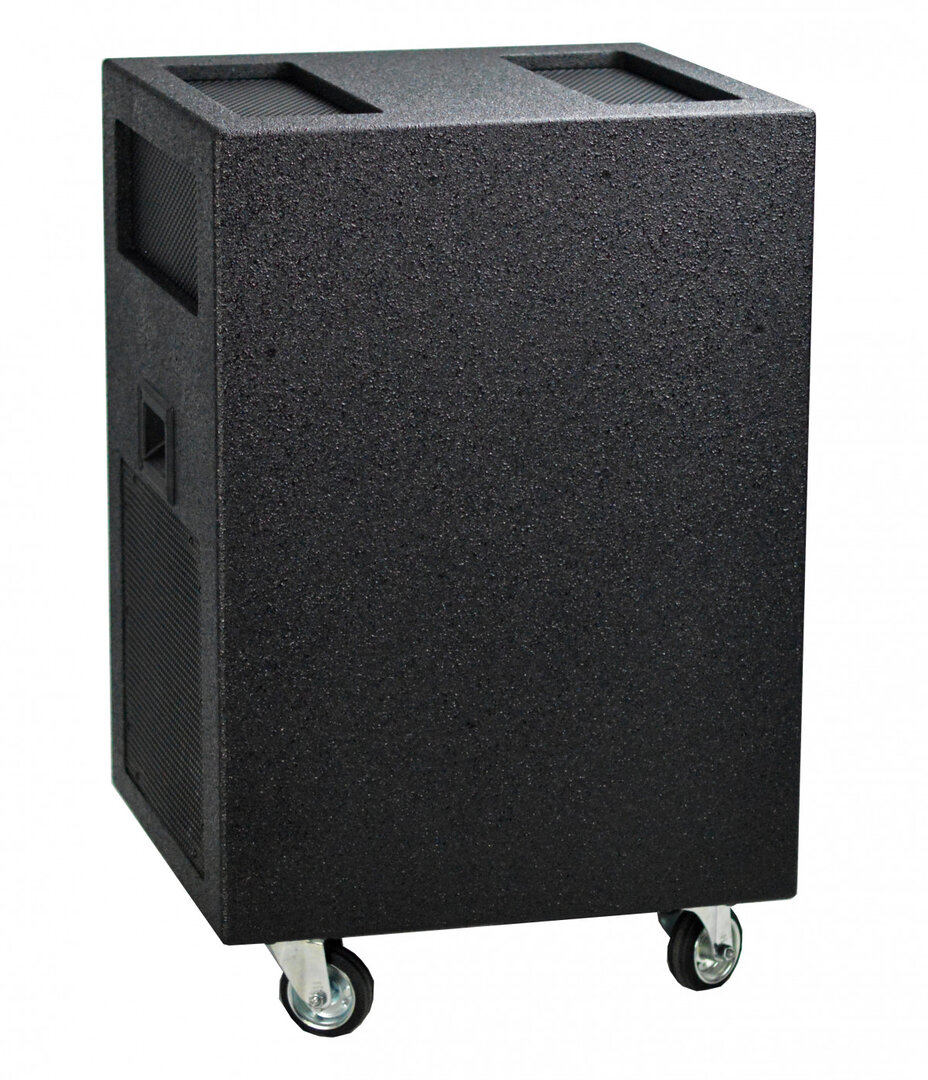

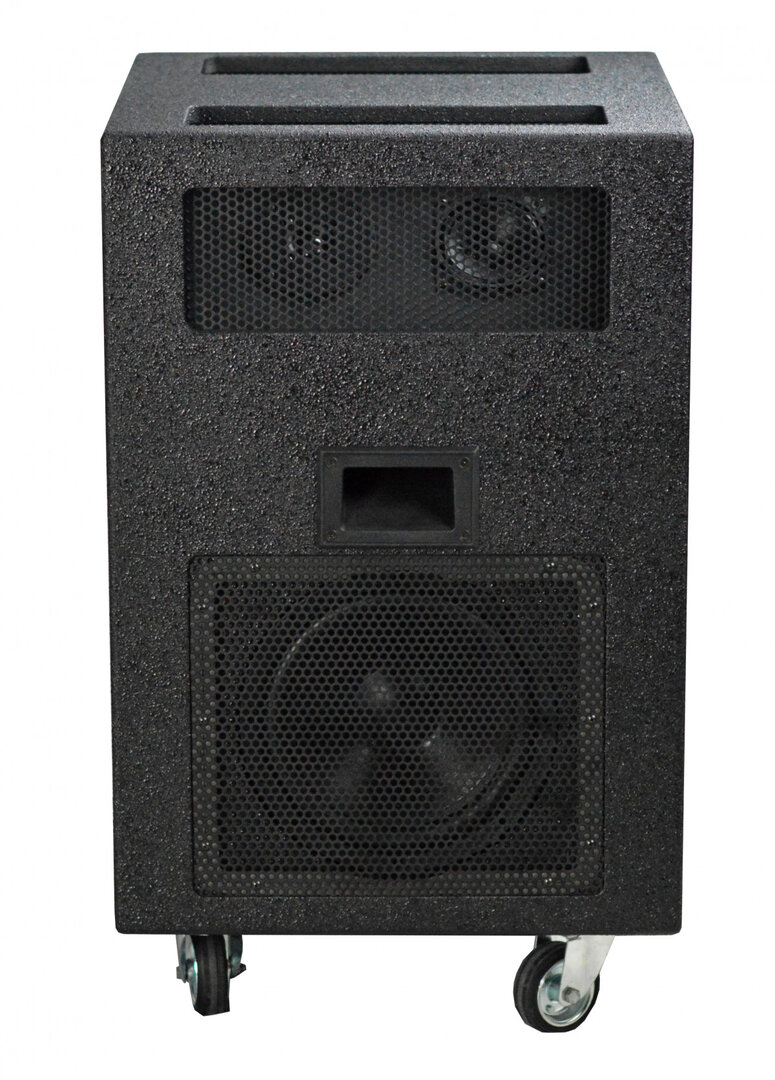

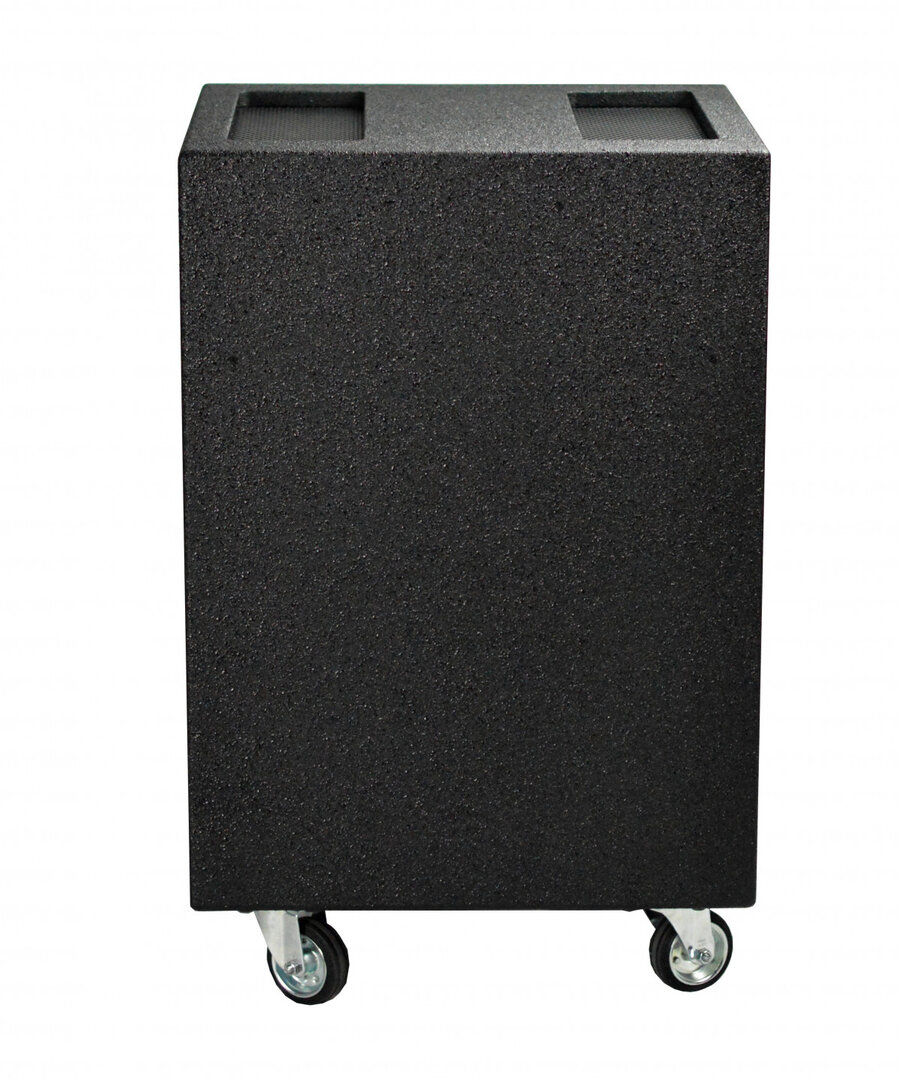

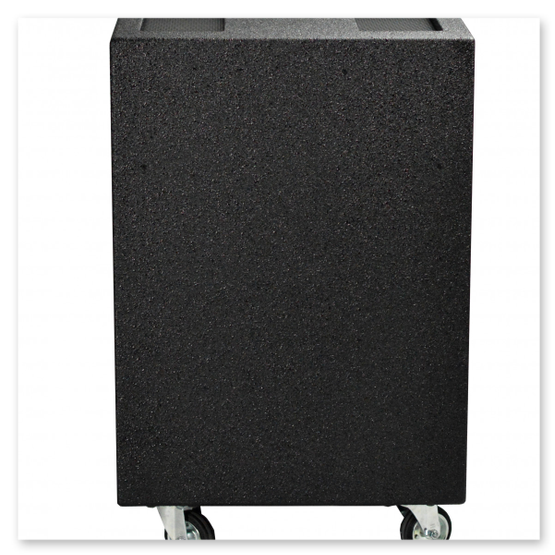

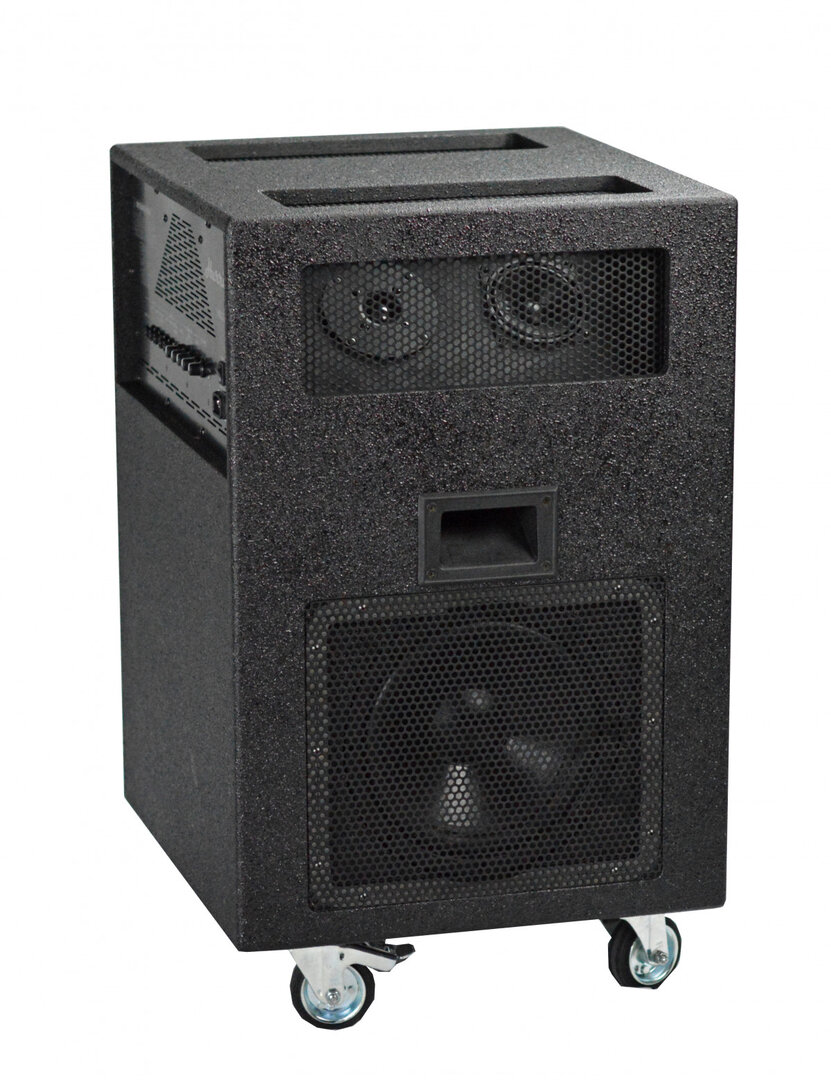

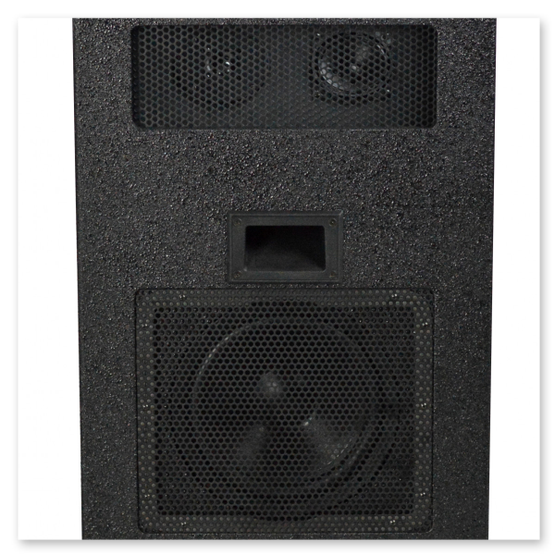

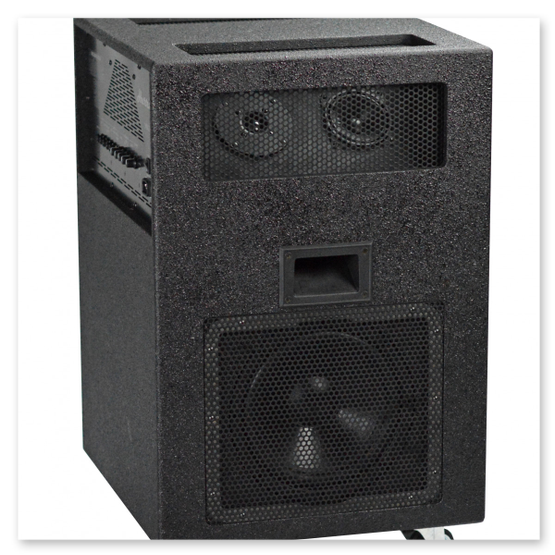

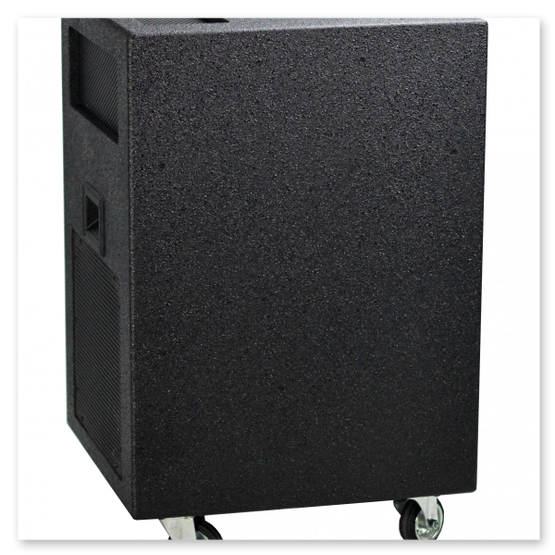

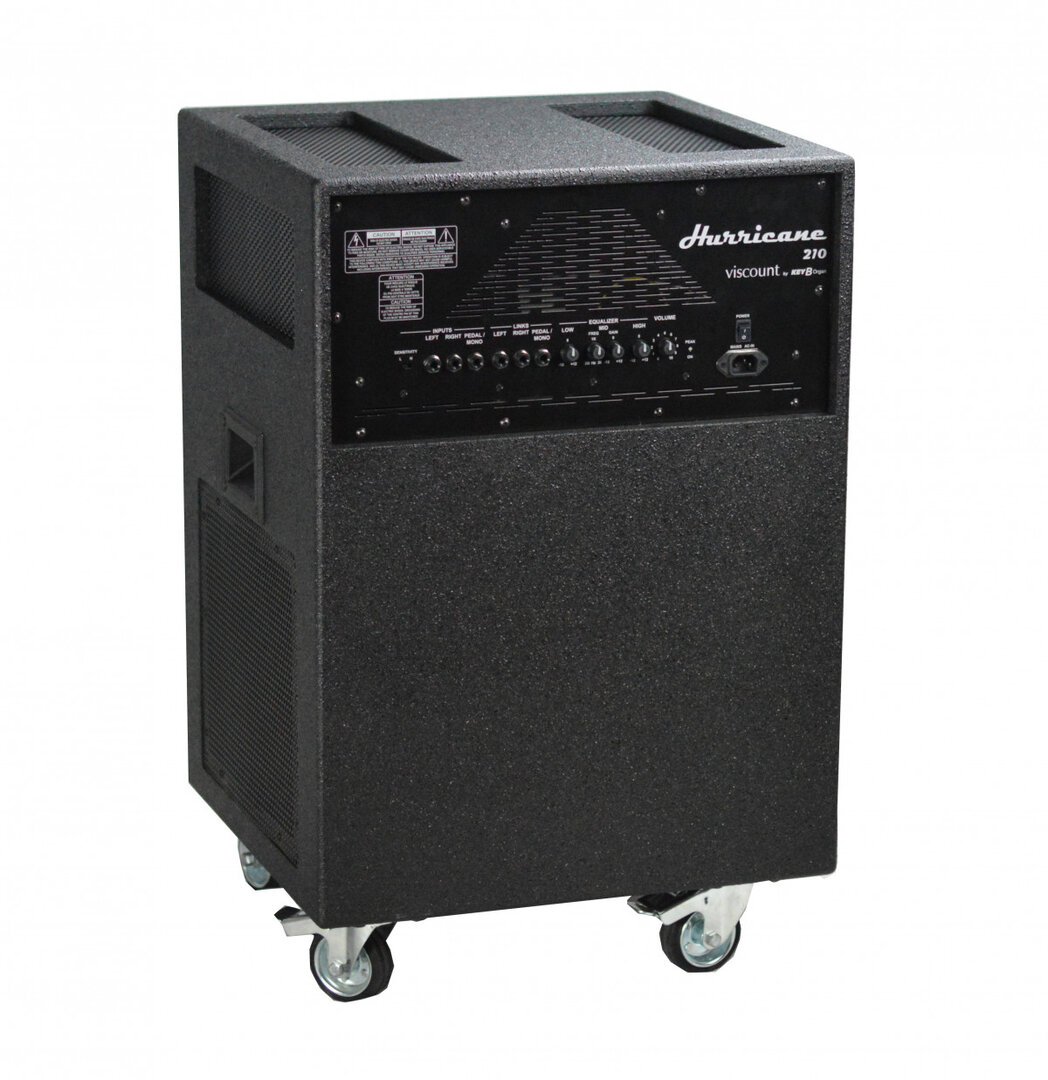

KEYB HURRICANE 210 CABINET
Det här kabinettet levererar!!! Mycket bra tryck i hela registret och dessutom perfekt placerade mellanregister- och diskanthögtalare som är snett riktade uppåt för perfekt spridning.
OBS! Det finns INGA ROTERANDE HÖGTALARE - man nyttjar KeyB orglarnas fina simulering.
OBS!!! DU KAN ANVÄNDA KABINETTET SOM ETT  PA - bara ett mixerbord som fattas.
Och eftersom inget snurrar så kan du KÖRA DITT DIGITALPIANO ELLER KEYBOARD PARALLELLT genom kabinettet.
PRISLISTA LEGEND JUNI 2022 SEK FÖR SVERIGE
INKL MOMS OCH FRAKT
